Product introduction

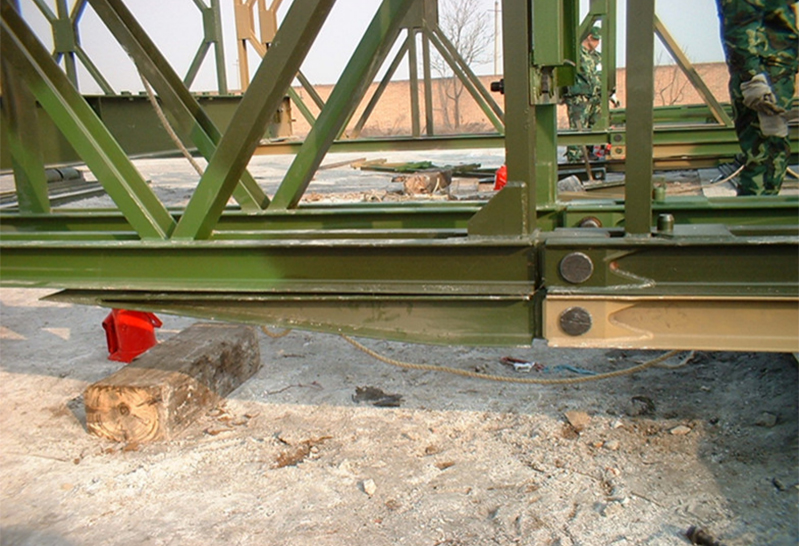

Bailey Bridge Inclined Chords used to make bridges with reinforced chords pass smoothly on the rollers during the advancing process. There are two types: female and male; they are installed at the start and stop ends of the lower chord of the truss, and are connected to the reinforced chord and truss with pins and hooks at the tail of the inclined chord.
Bailey panel, also known as truss panel, is customarily called Bailey frame and Bailey beam by the construction party. Widely used on Bailey steel bridge, as the most important structural unit of Bailey steel bridge, it plays a decisive role in the bearing of the bridge.
Supports, bridge piers, hanging baskets and other load-bearing structures can be composed of beret sheets.
321-type Bailey panel has the characteristics of simple structure, convenient transportation, fast erection, large load capacity, good interchangeability, and strong adaptability.
The 321 Bailey panel steel bridge is a prefabricated highway steel bridge. Its biggest features are: lightweight components, easy disassembly and assembly, strong adaptability, and can be quickly built with simple tools and manpower. It is suitable for 5 types of loads: car-10, car-15, car-20, crawler-50, trailer-80. The width of the bridge deck is 4m, which can be combined into a variety of simple beam bridges with spans ranging from 9m to 63m, which can be used to construct continuous beam bridges.
