Product introduction

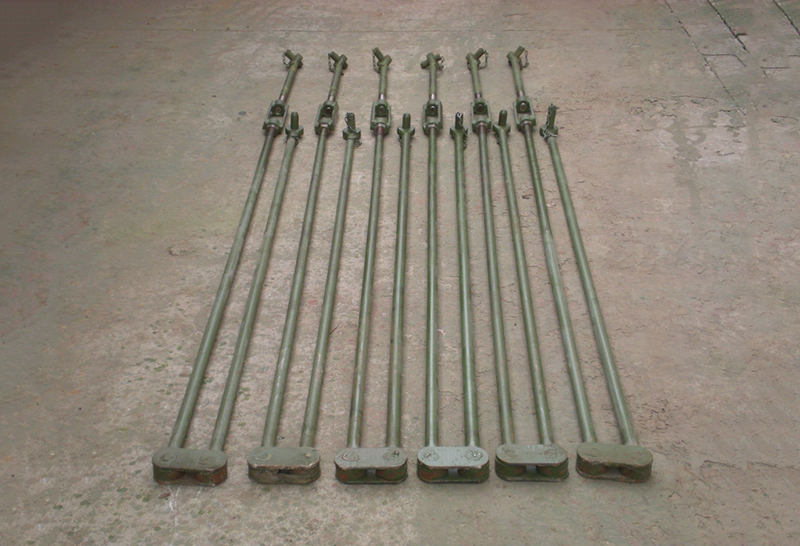

321-type bailey Sway Brace ，there is one pinhole on each end of the sway brace, with pin for hanging chains, connecting sway brace and truss by pin. There is a connecting clamp in the middle of sway brace, so as to bend the sway brace for convenience of transport. There is also turn buckle on the sway brace for adjusting the length of brace. In the turn buckle, there is length indicator collet, turning the buckle to brace end in touching with length indicator collet means the brace is in proper length. One end of the turnbuckle, there is locknut, preventing brace from releasing.
Two sway braces are set to the cross of two trusses, assuming the lateral wind-force to the bridge vertically. While installing brace, keep in proper length, tighten the nut, so as to keep the bridge straight and assume wind-force effectively.
The 200 type bailey Sway Brace is 8 channel steel, which is cross connected between two cross beams. It complements the vertical wind hook to ensure the stability of the beam.
It can be bended and adjust the length, easy to transport.
There is one pinhole on each end of the sway brace, with pin for hanging chains, connecting sway brace and truss by pin. There is a connecting clamp in the middle of sway brace, so as to bend the sway brace for convenience of transport. There is also turn buckle on the sway brace for adjusting the length of brace. In the turn buckle, there is length indicator collet, turning the buckle to brace end in touching with length indicator collet means the brace is in proper length. One end of the turnbuckle, there is locknut, preventing brace from releasing.
Two sway braces are set to the cross of two trusses, assuming the lateral wind-force to the bridge vertically. While installing brace, keep in proper length, tighten the nut, so as to keep the bridge straight and assume wind-force effectively.
Product characteristics
It can be bended and adjust the length, easy to transport.
Great Wall heavy industry steel bridge not only enjoys a good reputation In the country, but also has a good reputation abroad. Great Wall heavy industry has established long-term cooperative relations with many global companies such as the United States and Indonesia; Steel bridges have been exported to dozens of countries and regions such as Indonesia, Nepal, Congo (Brazzaville), Myanmar, Outer Mongolia, Kyrgyzstan, Mexico, Chad, the United States, Mexico, Trinidad and Tobago, Mozambique, Tanzania, Kenya, Ecuador and Dominica.
