Product application

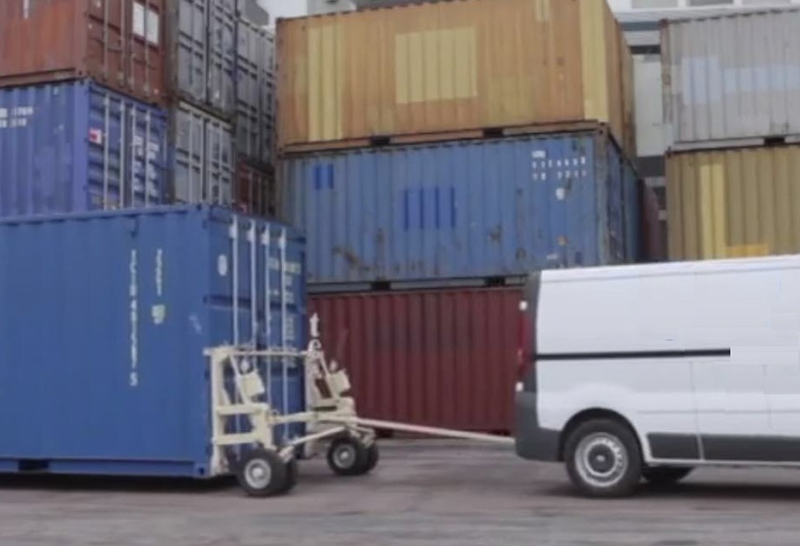

The container mobile equipment independently developed by Great Wall Heavy Industry has a utility model patent certificate. The product is foldable, simple in structure, and easy to operate. It can not only lift and tow, but also turn. The load is not less than 11 tons, and the service life is long. For 20 years, it is suitable for high altitude and rainy weather, and has passed ISO, CCIC, BV, SGS, CNAS and other certifications. Container mobile equipment is also called: square cabin walking mechanism, square cabin transportation equipment, packing box transportation equipment, etc. It is a product developed for the movement of standard containers or objects with standard corner fittings. It has the characteristics of simple operation and convenient walking. Used for short-distance, low-speed transfer of machine body packaging boxes and transport containers.
advantage
1. Patented
2. Foldable
3. Long service life
4. Can produce R&D
Product Specification
| Specification | |
| Product name: | Container Rolling set |
| Alias: | Container handling equipment; container moving equipment; shelter moving mechanism; Shelter handling equipment; packing box transportation equipment; container transportation equipment, etc. |
| Single weight | Not more than 1500 kg |
| Load bearing | Not less than 11 tons |
| Function | Lifting; traction; steering, etc. |
| Lifting height from the ground | Not less than 300MM |
| life | Not less than 20 years (working hours) |
| Environmental adaptability | Working temperature: -20℃~+55℃; Storage temperature: -45℃~+65℃; Relative humidity: ≤95% (30℃) Rain: can pass the rain test (6mm/min, duration is 1 hour); Altitude: suitable for below 4000 meters above sea level |
| Hydraulic oil model | 46# normal temperature anti-wear hydraulic oil |
| Pass the certification: | ISO, CCIC, BV, SGS, CNAS, etc. |
| manufacturer: | Zhenjiang Great Wall Heavy Industry Technology Co., Ltd. |
| Annual output: | 80 sets |
