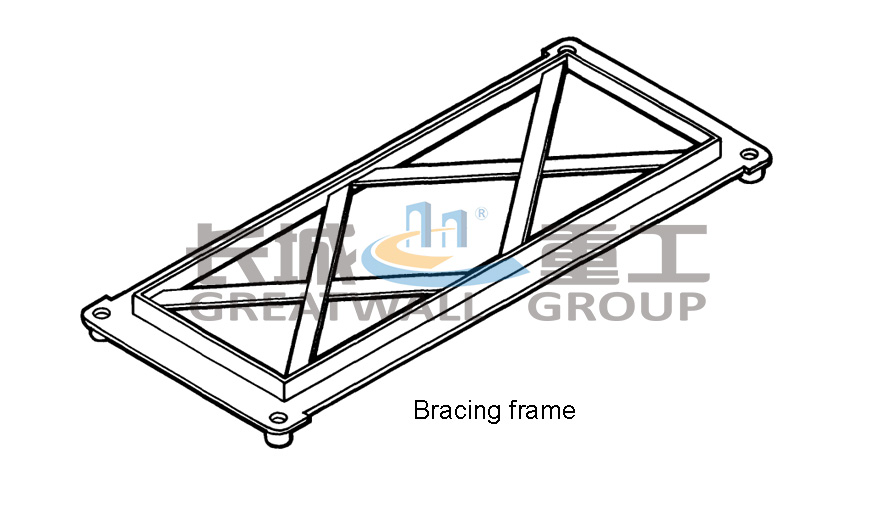

Bailey bridges are often exposed to various lateral forces such as wind and water currents (if over water) or traffic – induced lateral impacts. Bracing frames are used to provide lateral stability to the bridge structure. Diagonal bracing members are typically installed between the vertical truss members of the Bailey bridge. These braces resist the lateral forces by going into either tension or compression, depending on the direction of the force. For example, when a strong wind blows against the side of the bridge, the diagonal braces on the windward side may go into tension, while those on the leeward side may go into compression, effectively preventing the bridge from excessive swaying.
Supporting during Construction
During the construction of a Bailey bridge, bracing frames play a crucial role. They are used to hold the bridge components in the correct position and alignment. Before the full installation of the bridge deck and other elements, the bracing frames provide temporary support to the truss structure. This is especially important when assembling the individual truss units of the Bailey bridge. The bracing helps to maintain the shape and stability of the trusses as they are being joined together, ensuring that the bridge is built according to the intended design.
Distributing Loads
In a Bailey bridge, the bracing frames help in distributing the loads more evenly. When a vehicle or other load is applied to the bridge deck, the load is transferred through the deck to the main truss structure. The bracing frames then distribute this load laterally among the different truss members. For example, cross – bracing in the bridge can transfer part of the load from one side of the truss to the other, reducing the stress concentration on individual members and enhancing the overall load – bearing capacity of the bridge. This is crucial for the long – term durability and safety of the Bailey bridge, especially when it is subjected to heavy or dynamic loads such as military vehicles or heavy construction equipment.
Seismic Resistance (if applicable)
In regions with seismic activity, bracing frames can enhance the seismic resistance of Bailey bridges. Eccentric bracing frames, for example, can be designed to dissipate the energy of an earthquake through plastic deformation. The bracing members and their connections are engineered to allow for a certain amount of controlled deformation during an earthquake, which helps to absorb and reduce the impact of the seismic forces on the bridge structure. This can prevent the bridge from collapsing or suffering severe damage during an earthquake, ensuring its continued functionality and safety for emergency vehicles and other essential traffic.
