The Charm and Performance of Steel Box Girders

Steel box girders, with their unique appeal and superior performance, have become the steel spine that spans chasms in modern bridge construction. They are not only a masterpiece of engineering technology but also an important link that connects regions and promotes development.

Structural Features and Advantages of Steel Box Girders

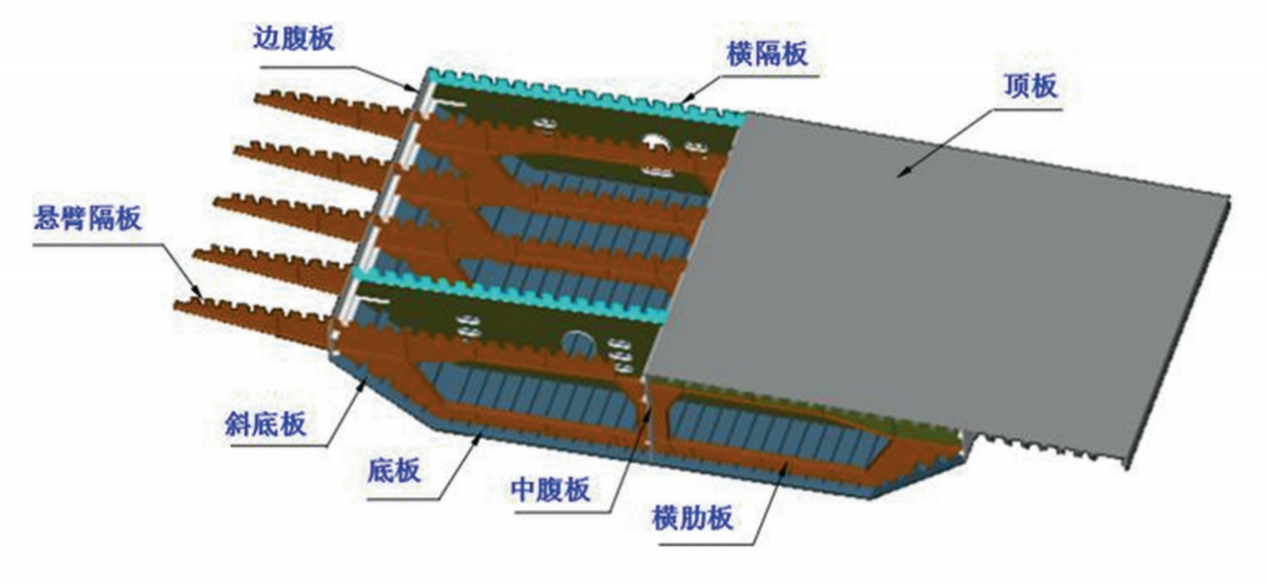

Steel box girders, named for their box-like shape, are a common structural form for large-span bridges. Their wide and flat cross-section with a height-to-width ratio of about 1:10 gives them a special place in the construction of large-span bridges. Typically, steel box girders are made up of a top plate, bottom plate, side plates, transverse and longitudinal stiffeners, all connected by full welding. The top plate is an orthogonal anisotropic bridge deck composed of a cover plate and longitudinal stiffeners. For example, a typical steel box girder may have the following plate thicknesses: cover plate 14mm, longitudinal U-shaped ribs 6mm, top width 320mm, bottom width 170mm, height 260mm, spacing 620mm; bottom plate thickness 10mm, longitudinal U-shaped stiffeners; diagonal side plates 14mm, central side plates 9mm; transverse stiffeners spaced at 4.0 meters, thickness 12mm; girder height 2 to 3.5 meters.

The commonly used cross-sectional forms are diverse, including single-box single-chamber, single-box triple-chamber, double-box single-chamber, triple-box single-chamber, multi-box single-chamber, diagonal side plate trapezoidal, single-box with more than three side plates multi-chamber, and flat steel box girders. Among them, the double-box single-chamber section is the most widely used, while multi-box single-chamber is often used for wider bridges. Flat steel box girders have a smaller ratio of height to width and mainly play a role in the ribs of suspension bridges, cable-stayed bridges, and arch bridges, and are rarely seen in beam bridges. Single-box multi-chamber steel box girders with more than three side plates are less frequently used due to the difficulty in manufacturing and installation.

Steel box girders have many significant advantages. Firstly, they have high tensile strength and load-bearing capacity, easily dealing with various complex load conditions. Secondly, they are lightweight, especially suitable for large-span bridges, achieving long-distance spans without adding too much burden to the substructure. Moreover, they are easy to install, cost-effective, and have a short construction period. Professional construction teams can complete the installation of steel box girders in a relatively short time, greatly saving engineering time and costs. At the same time, steel box girders are of high quality and reliability, with high construction efficiency and full safety guarantees. Additionally, they save materials due to their light weight. Compared with steel truss bridges of the same span, they can save about 20% of steel, reducing the cost of the substructure. Moreover, they have large bending and torsional stiffness, and their closed section provides greater resistance to bending and torsion, especially suitable for curved bridges and straight steel box girder bridges with large eccentric loads. They are quick to install and easy to maintain, can be made into large units in the factory, reducing on-site connection work, ensuring installation quality and accuracy. The closed box structure also facilitates painting, anti-corrosion, and rust prevention, making subsequent manual maintenance simple.

Applications and Manufacturing Excellence of Steel Box Girders

Steel box girders are widely used in municipal viaducts and ramp steel box girders, playing an important role in the construction of large-span cable-stayed bridges, suspension bridges, arch bridge stiffening beams, and pedestrian bridge steel box girders during traffic organization. Whether it is the traffic arteries of bustling cities or the grand projects spanning mountains and rivers, steel box girders provide a solid guarantee for people’s travel and economic development with their excellent performance and reliable quality.

Among the many steel box girder manufacturers, Zhenjiang Great Wall Heavy Industry stands out. The company has overhead cranes of more than 50 tons, a professional team of designers, welders, and installers, capable of undertaking various steel box girder production and installation. They have won widespread praise and trust from customers with their exquisite technology, strict quality control, and efficient services, creating high-quality steel box girder projects one after another.

Steel box girders, a treasure of modern bridge engineering, are building steel rainbows across the country with their solid quality and excellent performance, contributing to the realization of the Chinese Dream of the great rejuvenation of the Chinese nation.
